The LED reflector made of ceramic with a power output of 4.9W and a GU10 socket produces warm white light at 3000K. With a beam angle of 36°, it provides focused lighting, ideal for stylish accent lighting in indoor spaces.
Special feature:

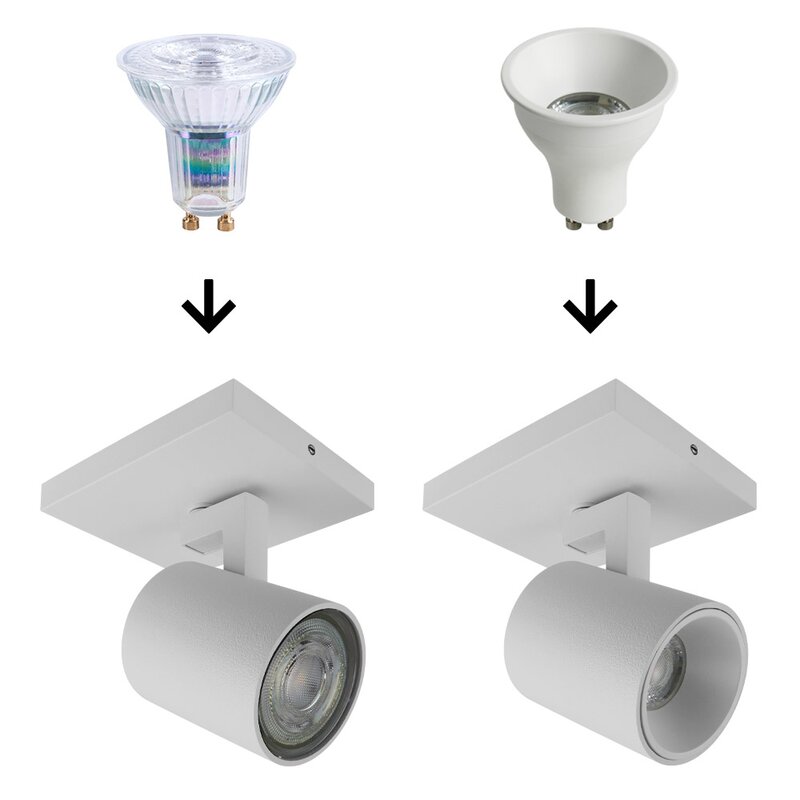

The reflectors can be combined with the rings from the "Deep-Deco" series, offering you flexible design options for your lighting. The attachments can be quickly and easily screwed onto the light sources.
This positions the actual light source deeper, allowing for nearly glare-free illumination (UGR <5), ensuring even and eye-friendly lighting.
When used with the screw-on rings, these reflectors are also compatible with many recessed spotlights and track lighting systems, enabling seamless integration into various lighting setups. This allows you to create a harmonious lighting atmosphere in any room.
| Wattage: | 5 Watt |
LED Reflektor Weiß 4,9W GU10 warmweiß 3000K 36°
Elektrische Daten
Electrical Data
| Bemessungsleistung in W Rated wattage in W |
4.9 |
| Nennleistung in W Nominal wattage in W |
4.9 |
| Nennspannung in V Nominal voltage in V |
220 - 240 |
| Betriebsfrequenz in Hz Operating frequency in Hz |
50/60 |
Photometrische Daten
Photometrical Data
| Bemessungslichtstrom in lm Rated Luminous Flux in lm |
550 |
| Nennlichtstrom in lm Nominal Luminous Flux in lm |
550 |
| Lichtfarbe (Bezeichnung) Color Temperature (description) |
Warmweiß Warm White |
| Farbtemperatur in K Color Temperature in K |
3000 |
| Farbwiedergabeindex Ra Color rendering index Ra |
82 |
| Dimmbar Dimmable |
Nein No |
Produkt Ausführung
Product Specification
| Sockel Socket |
GU10 |
| Quecksilbergehalt in mg Mercury content in mg |
0,00 |
| Quecksilberfrei Mercury-free |
Ja Yes |
| Farbe Colour |
Weiß white |
| Bemessungslebensdauer in h Rated lamp lifespan in h |
40.000 |
| Nennlebensdauer in h Nominal lamp lifespan in h |
40.000 |
| Temperatur und Betriebsbedingungen Working temperature and conditions |
-20 °C bis +40 °C |
Zertifikate und Standarts
Certificates and Standards
| Energieeffiziensklasse Energy efficency class |
E |
| Energieverbrauch Energy consumption |
5 kWh/1000h |
Abmessungen und Gewicht
Dimensions and Weight
| Kolbenform Bulb shape |
Reflektor Reflector |
| Durchmesser in mm Diameter in mm |
43 |
| Länge in mm Length in mm |
45 |
| Nettogewicht in g Net. Weight in g |
34 |
Bestellungen und Verpackungsinformation
Ordering and Packaging Information
| Artikelnummer Article number |
EAN Barcode |
Stück Pieces |
Abmessungen (in mm) Dimension (in mm) |
Gewicht (in g) Weight gross (in g) |
Volumen (in dm³) Volume (in dm³) |
| DD536W | 4251351808555 | 1 | 45 x 45 x 56 | 41 | 0.11 |
| DD536W | 4251351808555 | 100 | 260 x 260 x 290 | 4800 | 19.60 |
