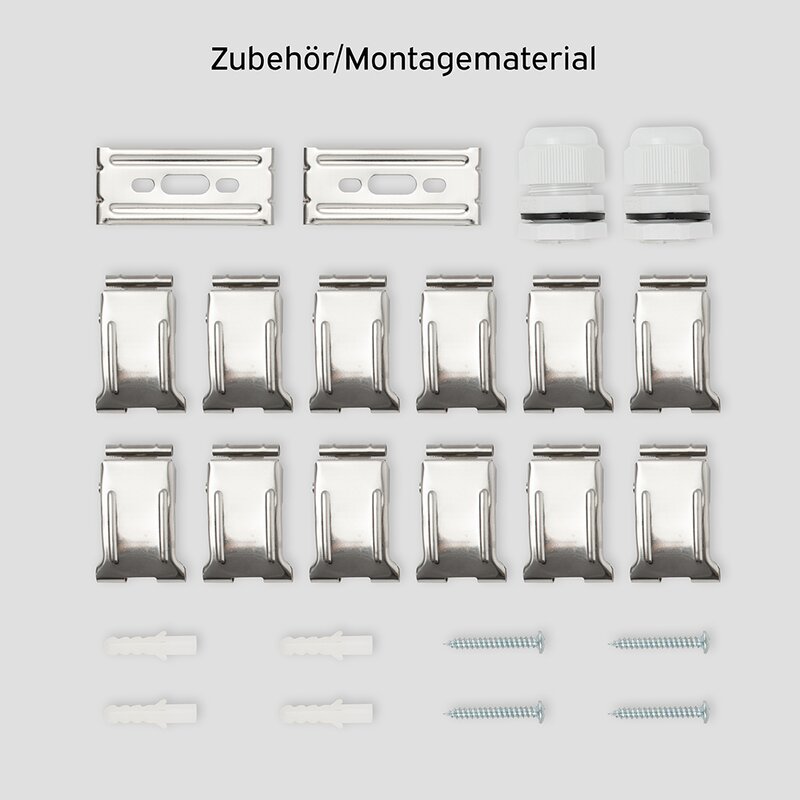

The premium series LED moisture-proof batten lights combine durability and versatility. Featuring replaceable T8 LED tubes, they deliver neutral white light at 4000K, ideal for demanding environments. The robust polycarbonate housing, complemented by stainless steel clips and mounting brackets for wall or ceiling installation, ensures maximum durability and protection, certified to IP65 and IK10 standards. Installation is made simple with quick one-person mounting, push-in terminal connectors, and through-wiring. All necessary mounting materials are included.
| Wattage: | 36 Watt |
LED Feuchtraum Wannenleuchte 120cm 2x Röhre mit Leuchtmittel 4000K
Basis Daten
Base Data
| Artikelnummer Articlenumber |
FW122 |
| Gehäusematerial Housing material |
PC+PC |
| Material der Clips Material of the clips |
Edelstahl stainless steel |
| Material der Leuchtmittel Material of the Lighting Source |
Glas |
| Schutzglas Protective glass |
Nein No |
| Anzahl der Leuchtmittel Number of LIghting Sources |
2 |
| Austauschbare Leuchtmittel Replaceable Lighting Source |
Ja Yes |
| IP-Schutzklasse IP Protection Class |
65 |
| IK-Code IK code |
IK10 |
| Schutzart Appliance class |
II |
| Durchgangsverdrahtet Through-wireable |
Ja Yes |
| Maximale Schaltleistung in LED Betrieb in W Switching capacity when used with LED Lamps in W |
1200 |
| Leitungskabel Cable |
5 x 1,5 mm² |
| Sockel Socket |
G13 |
Elektrische Daten
Electrical Data
| Betriebsspannung in V Working voltage in V |
220 - 240 AC |
| Betriebsfrequenz in Hz Operating frequency in Hz |
50/60 |
| Bemessungsleistung in W Rated wattage in W |
36 |
| Nennleistung in W Nominal wattage in W |
36 |
| Betriebstemperatur in °C Working temperature in °C |
-20 ... +40 |
| Energieeffiziensklasse Energy efficency class |
F |
| Energieverbrauch Energy consumption |
36 kWh/1000h |
| Netzleistungsfactor Power factor |
0,5 |
Photometrische Daten
Photometrical Data
| Bemessungslichtstrom in lm Rated Luminous Flux in lm |
3600 |
| Nennlichtstrom in lm Nominal Luminous Flux in lm |
3600 |
| Bemessungslebensdauer in h Rated lamp lifespan in h |
20000 |
| Nennlebensdauer in h Nominal lamp lifespan in h |
20000 |
| Lichtstromerhalt nach 2000 Stunden in % Lumen remains at end of lifespan in % |
96 |
| Lichtstromerhalt nach Lebensdauerende in % Lumen remains at the end of lifespan in % |
70 |
| Anzahl der Schaltzyklen Number of switch cycles |
100000 |
| Lichtfarbe (Bezeichnung) Color Temperature (description) |
Neutralweiß Neutral White |
| Farbtemperatur in K Color Temperature in K |
4000 |
| Farbwiedergabeindex Ra Color rendering index Ra |
> 80 |
| Farbconstistenzlevel Level of Color Consistance |
6 |
| Aufwärmzeit (60%) in s Warm-up time (60%) in s |
< 0,5 |
| Startzeit in s Starting time in s |
0,2 |
| Dimmbar Dimmable |
Nein No |
| Bemessungshalbswertswinkel in ° Rated Beam Angle in ° |
130 |
Abmessungen und Gewicht
Dimensions and Weight
| Länge in mm Length in mm |
1260 |
| Breite in mm Width in mm |
101 |
| Höhe in mm Heigth in mm |
75 |
| Nettogewicht in g Net. Weight in g |
1850 |
Bestellungen und Verpackungsinformation
Ordering and Packaging Information
| Artikelnummer Article number |
EAN Barcode |
Stück Pieces |
Abmessungen (in mm) Dimension (in mm) |
Gewicht (in g) Weight gross (in g) |
Volumen (in dm³) Volume (in dm³) |
| FW122 | 4251351805332 | 1 | 1290 x 105 x 75 | 1950 | 10,159 |
| FW122 | 4251351805332 | 6 | 1300 x 250 x 220 | 11920 | 71,5 |
| Artikelnummer
Article number |
EAN
Barcode |
Stück auf Palette
Pieces on pallet |
|||
| FW122 | 4251351805332 | 90 |
